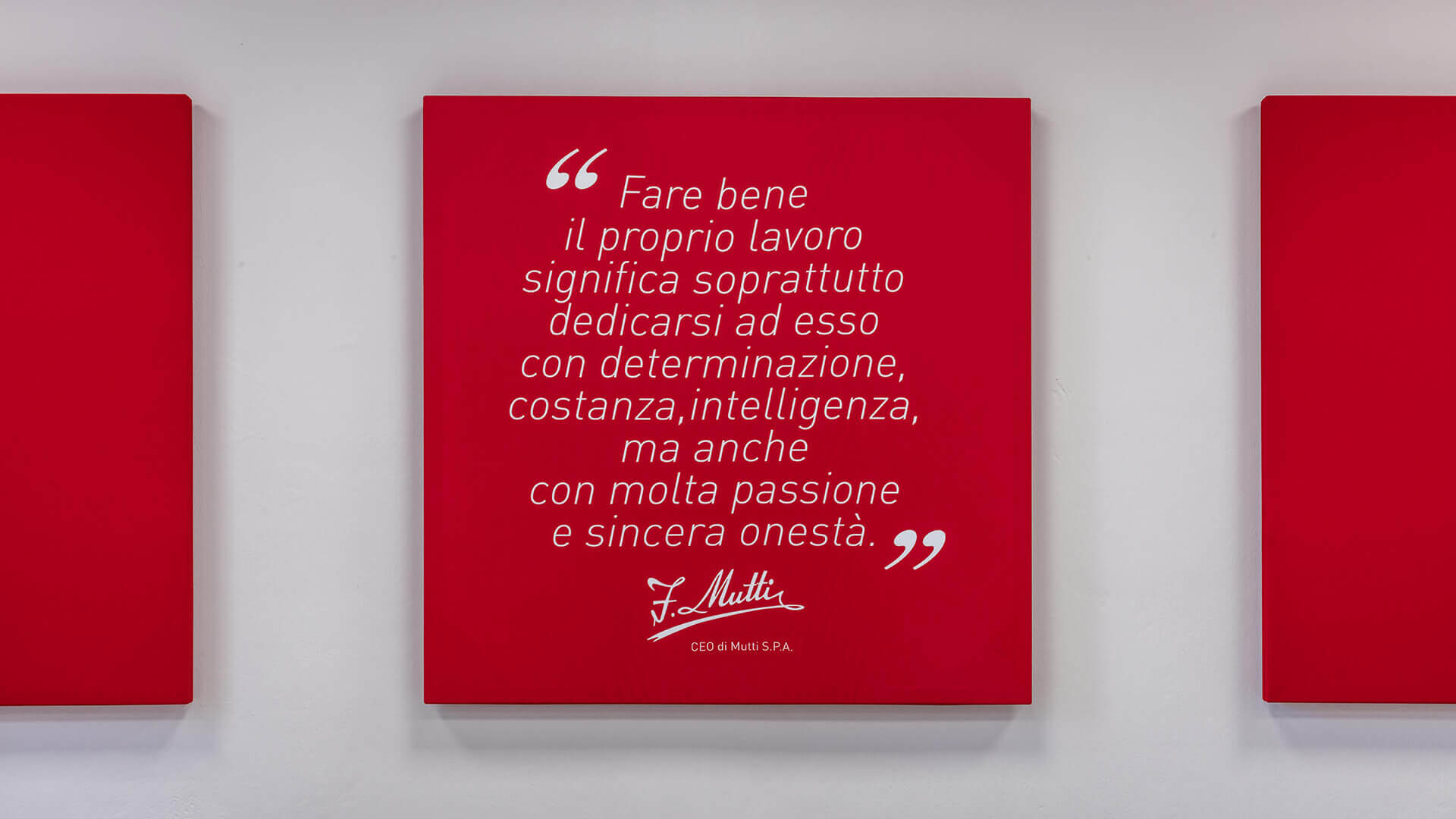

Silente is a single-sided removable square and rectangular sound-absorbing panel upholstered in fabric, which can be installed on the wall or on the ceiling with special tracks. This complete, highly innovative solution can be adapted to a wide variety of settings, including office areas, conference halls, restaurants, theatres and teaching and recreational areas. As well as the versions for fixing to walls and ceilings, there is also a version that can be suspended from the ceiling, using adjustable cables that offer greater flexibility during installation. A range of different configuration options are available, and the panels can be installed at different heights and with various alignments. The panels can also be fitted with LED lighting, designed for seamless integration into the sound-absorbing system.

Materials

Efficient acoustic absorption, duration, safety: the Silente sound-absorbing panels have been devised and designed to guarantee optimal sound absorption, thanks to materials chosen with particular care.

Details of materials

Lighting

The integration of modern LED lighting systems into sound-absorbing panels is a highly interesting specification on the market which Caruso Acoustic has been able to achieve. Guaranteeing the correct light output through lighting technology calculations means meeting customers’ needs and offering them effective applications based on different power and angle parameters for the beam of light. Below are the LED lighting systems available for the Silente panel.

Dimensions: 23,62"x23,62" | 47,24"x11,81"
UGR <19
Power: 40W
Color: white
Light Color: 4000°K, 3000°K
Lumen: 4000lm (47,24"x11,81"), 5000lm (23,62"x23,62")
Driver: on/off or dimmer
Certifications: CE
Optical fixed: 60°
Power: 13W
Visible frame color: White RAL 9003 embossed - Grey RAL 9006 embossed - Black RAL 9005 embossed
Dimensions: 70 x 70 mm
Light Color: 4000°K, 3000°K
Driver: on/off or dimmer
Certifications: CE
Optical fixed: 60°
Power: 13W
Visible frame color: White RAL 9003 embossed - Grey RAL 9006 embossed - Black RAL 9005 embossed
Dimensions: Ø76 mm
Light Color: 4000°K, 3000°K
Driver: on/off or dimmer
Certifications: CE
Dimensions: 51,18"x51,18" | 66,92"x66,92" | 78,74"x78,74"
Power: from 13W to 30W
Light Color: 4000°K, 3000°K
Lumen: from 1488lm to 3564lm
Driver: 220V, Driver on/off or dimmer
Certifications: CE
Dimensions: Ø 51,18" | Ø 70,86" | Ø 82,67"
Power: from 13W to 30W
Light Color: 4000°K, 3000°K
Lumen: from 1488lm to 3672lm
Driver: 220V, Driver on/off or dimmer
Certifications: CE
LED’s/m: 240
Power: 19,2 W/m
Visible Dimensions: 0,98″
Light Color: 4000°K, 2700°K
Driver: on/off or dimmer
Certifications: CE
LED’s/m: 240
Power: 19,2 W/m
Light Color: 5000°K,4000°K, 2700°K
Driver: on/off or dimmer
Certifications: CE

Dimensions

The Silente sound-absorbing wall and ceiling panels are available in a wide range of standard sizes. You can therefore find the perfect balance between acoustics and aesthetics for any size venue. Thanks to their impressive performance, the Silente acoustic panels can be positioned effectively to guarantee the required level of acoustic comfort. Choose your size below:

Panels with special measurements can be made upon request for specific project requirements.

FIXING

  • Fixing with bars
  • Fixing with cables
The panels can be fixed to the wall or ceiling using dedicated tracks with made-to-measure sliding bars.Spacer bars
The panels can suspended from the ceiling using the kit composed of adjustable vertical cables.

ACOUSTIC ABSORPTION AND CERTIFICATIONS

A series of products have been designed and developed to solve the various acoustic issues in a wide range of different environments. Caruso Acoustic sound-absorbing products have been tested in reverberation chamber in accordance with standard ISO354 and are divided according to their type of application (walls, horizontal hanging cables, free-standing panels, etc). Technical data sheets and certifications are available upon request. Caruso Acoustic products meet European fire safety regulatory requirements in accordance with standard UNI EN 13501-1, certified under class B-s2,d0 for Basotect® melamine resin by Basf® and Stratocell® Whisper®, and American regulatory requirements USA ASTM E84-15b for Basotect® melamine resin by Basf®. These products also comply with existing health and safety legislation with certification on formaldehyde emissions ANSI / BIFMA M7.1-2011.

Hanging panel sound absorption*

Adherence panel sound absorption*

Sound-absorbing material: Melamina

Sound-absorbing material: Whisper

* Sound absorption tests in compliance with UNI EN ISO 354 performed on 120 x 120 x 5 cm standard panel
