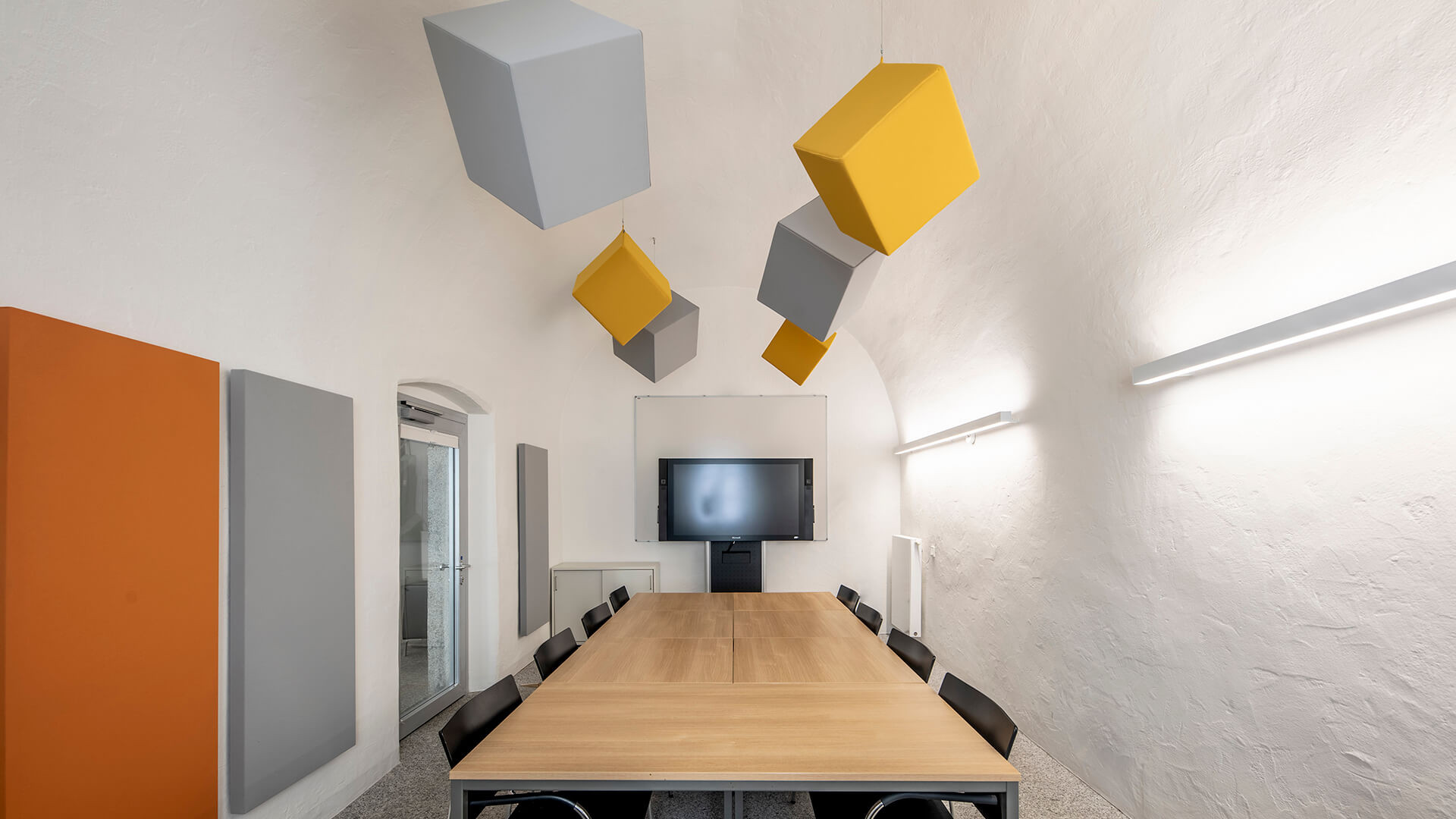

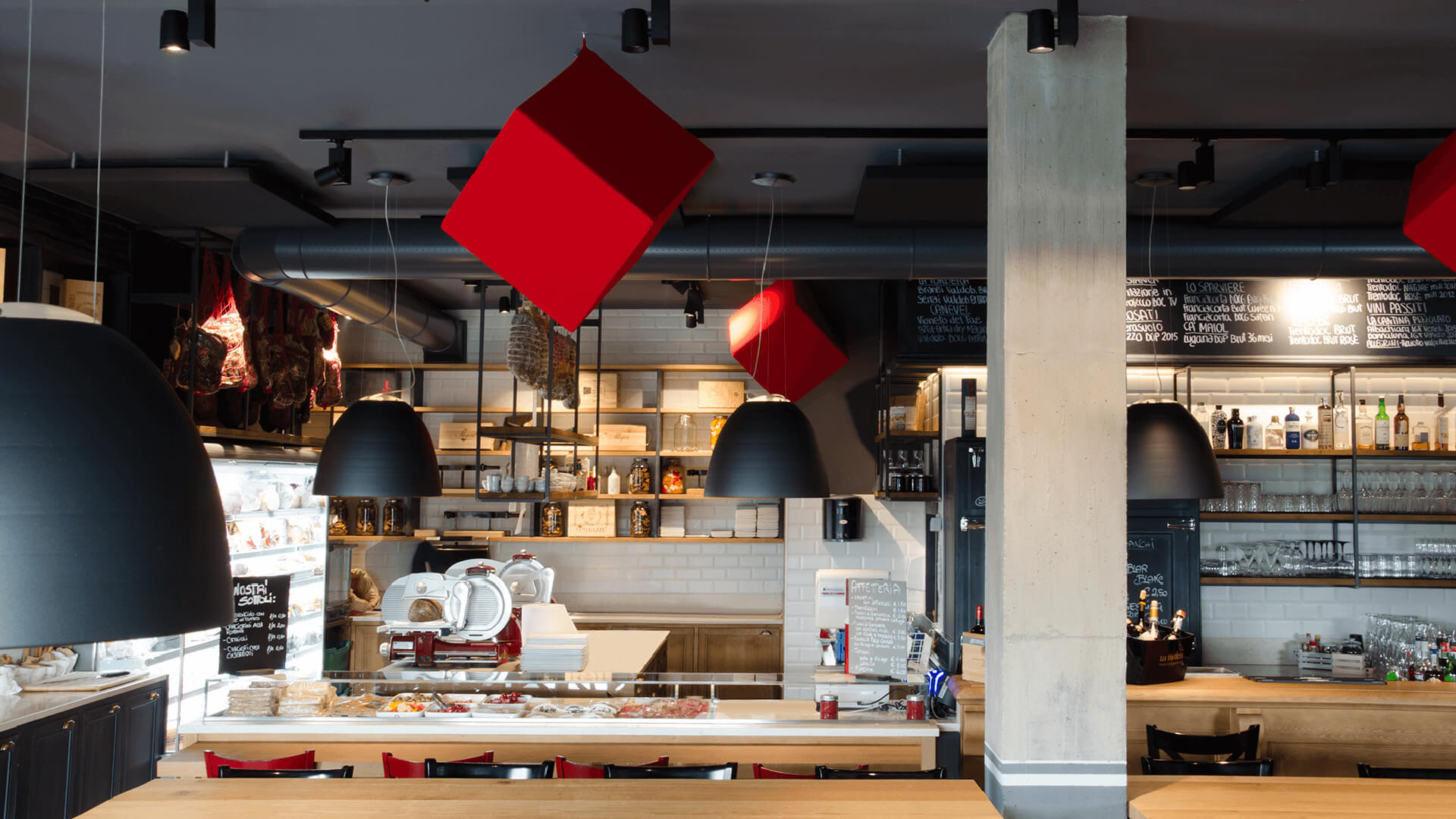

Kubo is an upholstered removable sound-absorbing cube that is particularly suitable for installation in areas with very high ceilings (above three metres). The ceiling fastening system with a steel cable attached to a corner of the cube lets you create various arrangements that meet the specific acoustic needs of different venues. The product has many different features: Kubo has thicker sound-absorbing material than other Caruso Acoustic products, overall size 15,75″x15,75″ and 19,68″x 9,68″, allowing greater absorption of low frequencies.

Materials

Effective acoustic absorption, durability and safety: the Kubo sound-absorbing elements have been devised and designed to guarantee optimal sound absorption, thanks to materials chosen with particular care.

Details of materials

Dimensions

The Kubo sound-absorbing cube is available in sizes of 15,75"x15,75″x15,75″ and 19,68″x19,68″x19,68″. Its small size means it takes up little space inside a room and thanks to its special fastening system with a steel cable, this sound-absorbing cube can be effectively positioned to meet the different comfort needs of its intended environment.

Panels with special measurements can be made upon request for specific project requirements.

FIXING

  • Fixing with cables
Kubo sound-absorbing element can be suspended from the ceiling using the kit composed of adjustable vertical cables.

ACOUSTIC ABSORPTION AND CERTIFICATIONS

A series of products have been designed and developed to solve the various acoustic issues in a wide range of different environments. Caruso Acoustic sound-absorbing products have been tested in reverberation chamber in accordance with standard ISO354 and are divided according to their type of application (walls, horizontal hanging cables, free-standing panels, etc). Technical data sheets and certifications are available upon request. Caruso Acoustic products meet European fire safety regulatory requirements in accordance with standard UNI EN 13501-1, certified under class B-s2,d0 for Basotect® melamine resin by Basf® and Stratocell® Whisper®, and American regulatory requirements USA ASTM E84-15b for Basotect® melamine resin by Basf®. These products also comply with existing health and safety legislation with certification on formaldehyde emissions ANSI / BIFMA M7.1-2011.

Hanging panel sound absorption*

Adherence panel sound absorption*

Sound-absorbing material: Melamina

Sound-absorbing material: Whisper

*Sound absorption tests in compliance with UNI EN ISO 354 performed on 120 x 120 x 5 cm standard panel
